Product no.: 88102-lasiset

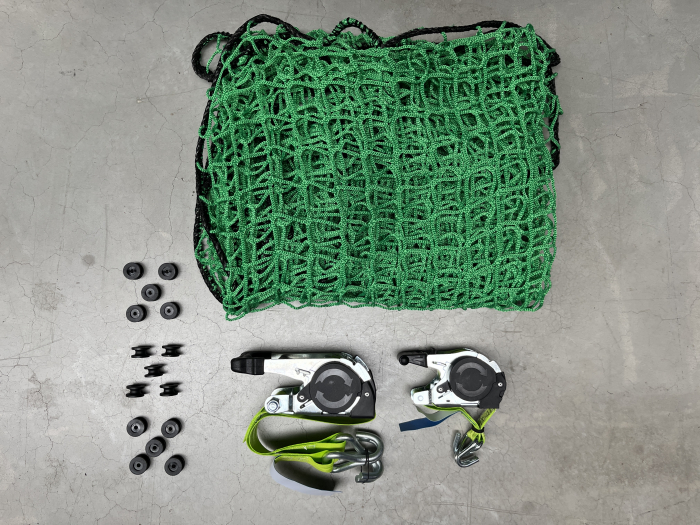

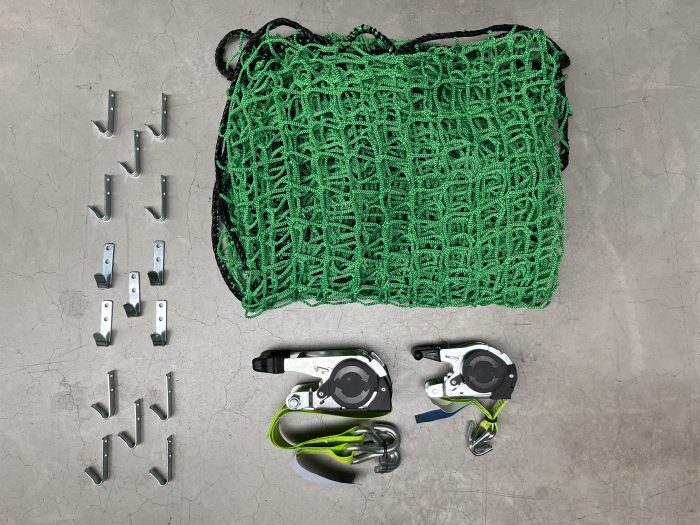

Here you will receive a high-quality trailer load securing set consisting of a flexible, high-strength plastic net including a robust edge cord and, optionally, for securing your net (attaching the net to the trailer); round buttons (item no. 70116), flat hooks (item no. 70108) or three-hole hooks (item no. 70107).

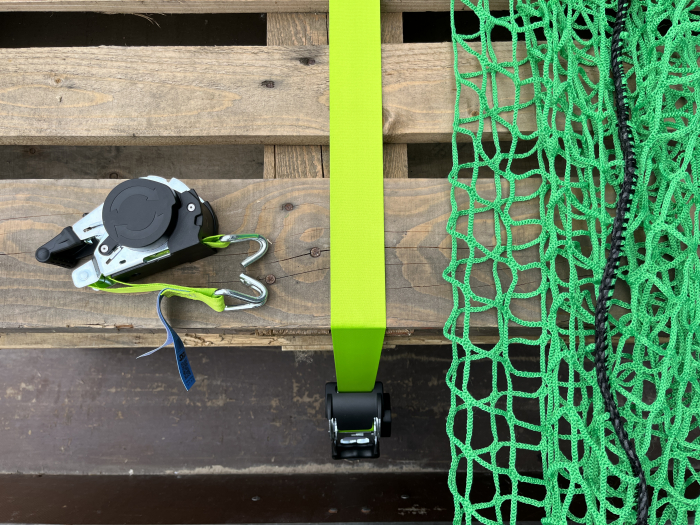

The set also contains two self-retracting automatic lashing straps, one with 25 mm webbing, 3.65 m long, including a pointed hook with a load capacity of 340/600 daN (item no. 70105-3) and one with 50 mm webbing, 3.00 m long, including a pointed hook with a load capacity of 750/ 1500 daN (item no. 70105-2).
This set therefore offers load securing equipment that no vehicle should be without, whether private or commercial. A safe bet for holiday trips and transporting items such as furniture, bulky waste, green waste and firewood. Secure your price advantage now!
Facts:
High-quality set for versatile load securing challenges – especially for bulky goods
Universal, air-permeable, stretchable, 100% recyclable, tear-resistant net, e.g. for furniture, leaves, firewood
Includes 8 mm edge cord and the appropriate number of round buttons or flat or three-hole hooks for each size
Includes two different lashing straps for lashing down transported goods on the loading area, e.g. pallets with building materials
Mesh DEKRA tested
Lashing straps TÜV and GS tested
Lightweight, super flexible material
Various colours
Made from robust, UV-resistant and durable polypropylene fabric
Can be used outdoors all year round – winter-proof
Application note: The automatic lashing straps are NOT intended for lifting!
Ordering information: For your convenience, you will find recommended sizes for 3 different trailer manufacturers below:
| Trailer type |
internal dimension Humbaur |
internal dimension Stema |
internal dimension Unsinn |
net size Dr. THIEL |
| low loader | 1450 x 1095mm | 1340 x 1080mm | 1700 x 1100mm | 1,5 x 2,0m |
| low loader | 2050 x 1095mm | 2010 x 1080mm | 2100 x 1100mm | 1,7 x 2,5m |
| low loader | 2510 x 1310mm | 2510 x 1280mm | 2500 x 1260(1400)mm | 2,0 x 3,0m |
| low loader | 3030 x 1500mm | - | 3000 x 1550mm | 2,0 x 3,5m |
| high loader | 2650 x 1650mm | 2510 x 1530mm | 2760 x 1500mm | 2,0 x 3,0m |
| high loader | 3100 x 1650mm | 3100 x 1530mm | 3060 x 1750mm | 2,0 x 3,5m |
| high loader | 3100 x 1850mm | 3100 x 1830mm | 3060 x 2040mm | 2,5 x 3,5m |
| high loader | 3100 x 2100mm | - | 3660 x 2040mm | 2,5 x 4,0m |
| high loader | 4100 x 1650mm | - | 3660 x 1750mm | 2,0 x 4,5m |
| high loader | 4100 x 1850mm | 4100 x 1830mm | - | 2,0 x 4,5m |
| high loader | 4100 x 2100mm | 4100 x 2030mm | 4260 x 2040mm | 2,5 x 4,5m |
Net item no. 88102
Material PP | Polypropylene
Characteristics
100% recyclable, high strength, slightly stretchy, soft structure
UV radiation stable up to 300 kLy
Net type knitted (without knots)
Mesh size 45 mm
Ø Net cord 3 mm
Edge cord Yes
Ø edge cord 8 mm
Colour Blue, green, black, white
Rubber cord as required
Ø rubber cord 6 mm
Tensile strength 5100 | 870 N
Temperature resistance -30 °C to +70 °C
Certification DEKRA, based on VDI 2700 Sheet 3.3
Manufactured in Germany

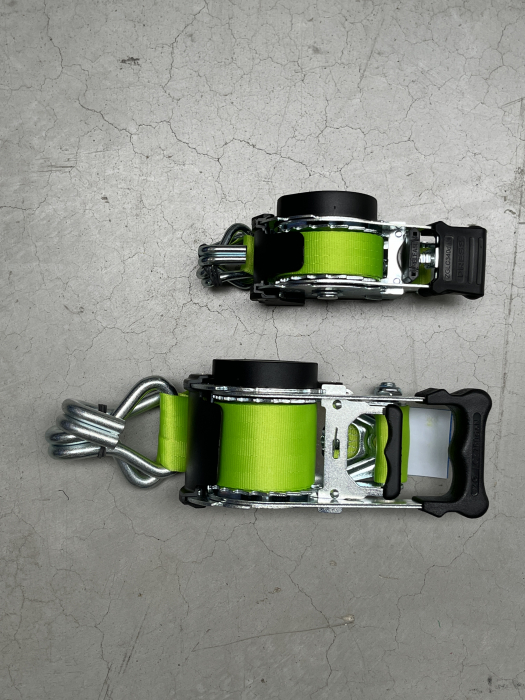

Automatic lashing straps in 2 versions
Material: PES | Polyester
Features: automatic roll mechanism, pointed hook or S-hook
Webbing width: selectable | 25 or 50 mm
Colour: neon green, black
Minimum length: 40 cm
Standardisation: PES EN 12195-2
25 mm ZurrMatic variant Item no. 70105-3:
Webbing width 25 mm
Elongation < 7%
Tensile force LC 340 / 600 daN
Hand force SHF 50 daN
Pre-tension force STF 95 daN
Length 3.65 m / 1.80 m
Note: NOT for lifting
Variant 50 mm ZurrMatic Item No. 70105-2:
Webbing width 50 mm
Elongation < 7%
Tensile strength LC 750 / 1500 daN
Hand force SHF 50 daN
Pre-tension force STF 100 daN
Length 3.0 m
Note: NOT for lifting
Round buttons Item no. 70116:
Material Plastic
Characteristics Can be mounted on both sides, for riveting or screwing onto trailers
Thickness/height 14 mm
Ø size 24 mm
Ø hole 5 mm
Colour Black
Flat hooks Item no. 70108:
Material stainless steel (NIROSTA, stainless steel)
Characteristics for riveting or screwing onto trailers
Size 15 x 2.5 mm
Length 68 mm
Ø hole 6 mm
Colour silver

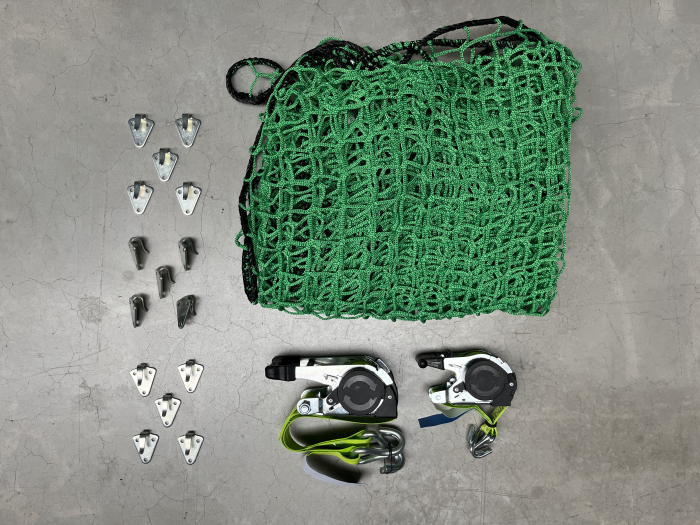

Three-hole hook Item no. 70107:
Material Galvanised steel
Characteristics Stamped design, for riveting or screwing onto pendants
Size 50 x 39 mm
Hole diameter 6 mm
Colour Silver
